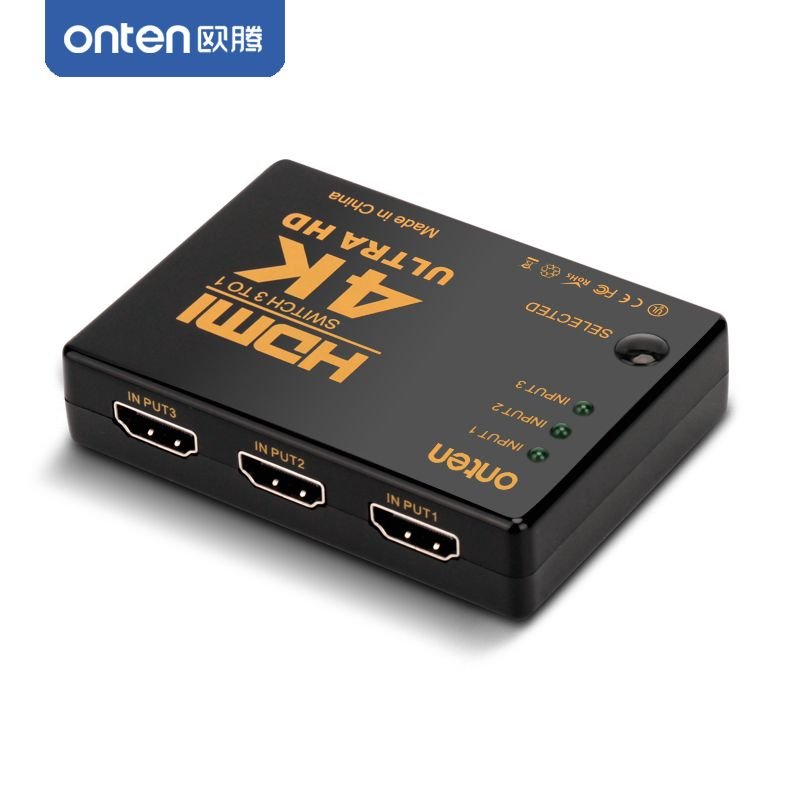

Onten HDMI Switch 3 In 1 Out 4K UHD

Overview:
The Onten 7592 HDMI 3x1 Switcher is a high-speed HDMI switch that allows you to connect up to three HDMI source devices to one display. Whether you're streaming from a DVD player, PS3, PC, or projector, this device ensures ultra-clear 4K visuals with seamless switching and remote control convenience.

Key Features

• 4K & 3D Support:
  Fully supports HDMI 1.4 version with 3D compatibility, 1080p resolution, and 12-bit pixel depth, providing an immersive viewing experience.

• Signal Amplification:
  Thanks to its high-performance design, it amplifies video signals up to 2.5Gbps, delivering consistent and sharp output.

• Easy Switching:
  It includes both manual and remote control switching options. Moreover, it supports smart switching that automatically selects the active input source based on power status, following the priority sequence: 1 → 2 → 3.

• Extended Transmission:
  It allows long-distance HDMI transmission up to 25 meters (requires external power for full functionality).

• HDCP Compatibility:
  Works flawlessly with HDCP-compliant devices, ensuring smooth signal transmission and playback.

• High-Definition Clarity:
  The switch supports HD video formats like 480i/p, 576i/p, 720p, 1080i/p, and up to 1920x1200 resolution, delivering crystal-clear visuals and vibrant colors.

Smart Functions

• When powered on, the switch intelligently detects and selects the first active input device.

• Automatically switches when a new device is turned on or connected.

• If a connected device is turned off or disconnected, the switch moves to the next active source.

• Please note: for proper smart switching, the 5V standby power of the source device must be completely off.

Technical Specifications

• Input Video Signal: 0.5-1.0V p-p

• Input DDC Signal: 5V p-p (TTL)

• Output Video Signal: HDMI1.3b, 3D, HDCP1.0/1.1

• Supported Formats:

  • VGA: 640x480, 800x600, 1024x768, 1920x1200

  • DTV/HDTV: 480i/p, 576i/p, 720p, 1080i/p

• Operating Frequency: Up to 250MHz

• Bandwidth: 2.5Gbps / 250MHz

• Product Size: 49mm x 50mm x 13mm

Package Includes

• 1 x HDMI 3x1 Switch

• 1 x Remote Control

• 1 x IR Receiver

• 1 x Power Cable (Power only required for select devices like PS4; not needed for most)

This compact and efficient HDMI switch makes it simple to manage multiple devices without constant cable swapping. As a result, it offers both convenience and performance.
